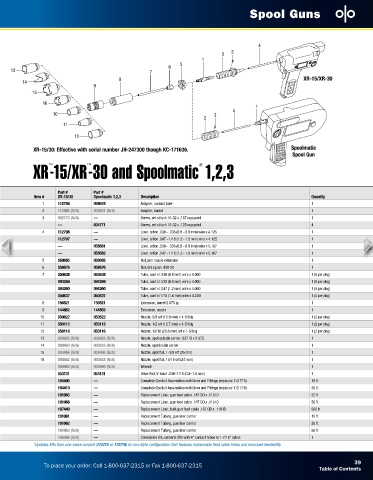

Spool Guns

XR-15/30: Effective with serial number JH-247300 though KC-171636.
XR-15/XR-30 and Spoolmatic 1,2,3
™
™
®

Part # Part #
Item # XR-15/30 Spoolmatic 1,2,3 Description Quantity
1 112704 058678 Adapter, contact tube 1
2 112885 (N/A) 009541 (N/A) Adapter, barrel 1
3 602172 (N/A) — Screw, set stl sch 10-32 x .187 cup point 1
— 604771 Screw, set stl sch 10-32 x .125 cup point 4
4 112708 — Liner, teflon .030 – .035 (0.8 – 0.9 mm) wire x 4.125 1
112707 — Liner, teflon .047 – 1/16 (1.2 – 1.6 mm) wire x 4.125 1
— 058681 Liner, teflon .030 – .035 (0.8 – 0.9 mm) wire x 5.187 1
— 058682 Liner, teflon .047 – 1/16 (1.2 – 1.6 mm) wire x 5.187 1
5 058685 058685 Nut, jam nozzle extension 1
6 058676 058676 Nut, brs cprsn .438-20 1
7 050638 050638 Tube, cont sl .030 (0.8 mm) wire x 4.000 1 (5 per pkg)
094259 094259 Tube, cont sl .035 (0.9 mm) wire x 4.000 1 (5 per pkg)
094260 094260 Tube, cont sl .047 (1.2 mm) wire x 4.000 1 (5 per pkg)
050637 050637 Tube, cont sl 1/16 (1.6 mm) wire x 4.000 1 (5 per pkg)
8 156821 156821 Extension, barrel 2.875 lg 1
9 144862 144862 Extension, nozzle 1
10 050622 050622 Nozzle, 5/8 orf (15.9 mm) x 1-5/8 lg 1 (2 per pkg)
11 050115 050115 Nozzle, 1/2 orf (12.7 mm) x 1-5/8 lg 1 (2 per pkg)
12 050116 050116 Nozzle, 13/16 (20.6 mm) orf x 1-5/8 lg 1 (2 per pkg)
13 009925 (N/A) 009925 (N/A) Nozzle, spot outside corner .937 ID x 2.375 1
14 000443 (N/A) 000443 (N/A) Nozzle, spot inside corner 1
15 004466 (N/A) 004466 (N/A) Nozzle, spot flat, 1-3/8 orf (35 mm) 1
16 000442 (N/A) 000442 (N/A) Nozzle, spot flat, 15/16 orf (24 mm) 1
050960 (N/A) 050960 (N/A) Wrench 1
053131 053131 Drive Roll, V-knurl .030–1/16 (0.8–1.6 mm) 1
194405 — Complete Conduit Assemblies with Liner and Fittings (replaces 112 715) 15 ft
194410 — Complete Conduit Assemblies with Liner and Fittings (replaces 112 716) 30 ft
191065 — Replacement Liner, gun feed cable .187 OD x .110 ID 32 ft
191066 — Replacement Liner, gun feed cable .187 OD x .110 ID 50 ft
197440 — Replacement Liner, bulk gun feed cable .187 OD x .110 ID 500 ft
191061 — Replacement Tubing, gun liner carrier 15 ft
191062 — Replacement Tubing, gun liner carrier 30 ft
191063 (N/A) — Replacement Tubing, gun liner carrier 50 ft
156486 (N/A) — Conversion Kit, converts XRs with 4" contact tubes to 1-7/16" tubes 1
1 Updates XRs from one-piece conduit (112715 or 112716) to new style configuration that features replaceable feed cable liners and improved feedability.
