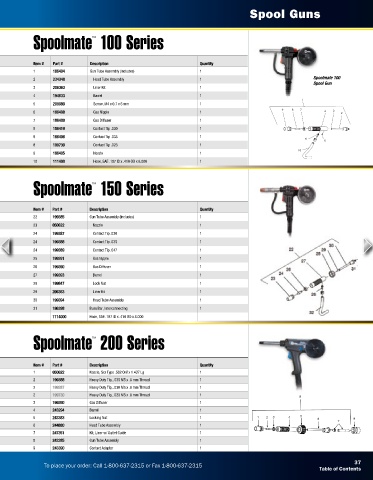

Spool Guns

Spoolmate 100 Series
™

Item # Part # Description Quantity
1 186404 Gun Tube Assembly (Includes) 1
2 234348 Head Tube Assembly 1 Spoolmate 100
Spool Gun
3 206363 Liner Kit 1
4 194633 Barrel 1
1
5 209080 Screw, M4 x 0.7 x 6 mm 1
6 186408 Gas Nipple 1 9 8 7 4 3 2
7 186409 Gas Diffuser 1
8 186419 Contact Tip .030 1
8 186406 Contact Tip .035 1
6
5
8 199730 Contact Tip .023 1
10
9 186405 Nozzle 1
10 111400 Hose, SAE .187 ID x .410 OD x 8.000 1

Spoolmate 150 Series
™

Item # Part # Description Quantity
22 199385 Gun Tube Assembly (Includes) 1
23 050622 Nozzle 1
24 199387 Contact Tip .030 1
24 199388 Contact Tip .035 1
24 199389 Contact Tip .047 1
25 199391 Gas Nipple 1
26 199390 Gas Diffuser 1
27 199393 Barrel 1
28 199847 Lock Nut 1
29 206363 Liner Kit 1
30 199394 Head Tube Assembly 1
31 196398 Buss Bar, Interconnecting 1
1114000 Hose, SAE .187 ID x .410 OD x 8.000

Spoolmate 200 Series
™

Item # Part # Description Quantity
1 050622 Nozzle, Scr Type .562 Orif x 1.437 Lg 1
2 199388 Heavy Duty Tip, .035 M5 x .8 mm Thread 1
2 199387 Heavy Duty Tip, .030 M5 x .8 mm Thread 1
2 199730 Heavy Duty Tip, .023 M5 x .8 mm Thread 1 8
3 199390 Gas Diffuser 1
4 243294 Barrel 1
5 243383 Locking Nut 1 1 2 3 4 5 6 9
7
6 244880 Head Tube Assembly 1
7 247351 Kit, Liner w/ Outlet Guide 1
8 243385 Gun Tube Assembly 1
9 243390 Contact Adapter 1
