P. 43

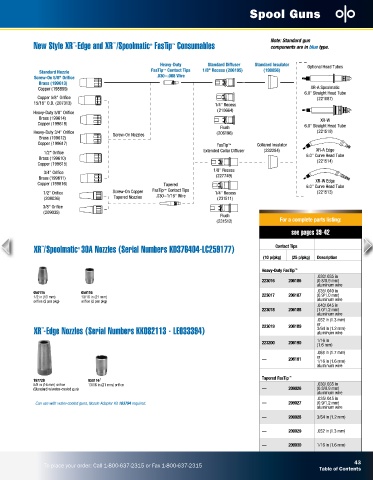

Spool Guns
New Style XR -Edge and XR /Spoolmatic FasTip Consumables Note: Standard gun
™
™
®
™
components are in blue type.
For a complete parts listing:
see pages 39-42
XR /Spoolmatic 30A Nozzles (Serial Numbers KD376404-LC259177) Contact Tips
™
®
(10 p/pkg) (25 p/pkg) Description
Heavy-Duty FasTip ™
.030/.035 in
223016 206186 (0.8/0.9 mm)
aluminum wire
.035/.040 in
050115 050116
1/2 in (13 mm) 13/16 in (21 mm) 223017 206187 (0.9/1.0 mm)
orifice (2 per pkg) orifice (2 per pkg) aluminum wire
.040/.045 in
223018 206188 (1.0/1.2 mm)
aluminum wire
.052 in (1.3 mm)
or
XR -Edge Nozzles (Serial Numbers KK082113 - LE033394) 223019 206189 3/64 in (1.2 mm)
™
aluminum wire
223200 206190 1/16 in
(1.6 mm)
.068 in (1.7 mm)
— 206191 or
1/16 in (1.6 mm)
aluminum wire
Tapered FasTip ™
197728 050116 1
5/8 in (16 mm) orifice 13/16 in (21 mm) orifice .030/.035 in
(Standard w/water-cooled gun) — 209026 (0.8/0.9 mm)
aluminum wire
.035/.045 in
Can use with water-cooled guns, Nozzle Adapter Kit 193794 required. — 209027 (0.9/1.2 mm)
aluminum wire
— 209028 3/64 in (1.2 mm)
— 209029 .052 in (1.3 mm)
— 209030 1/16 in (1.6 mm)
43
To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
