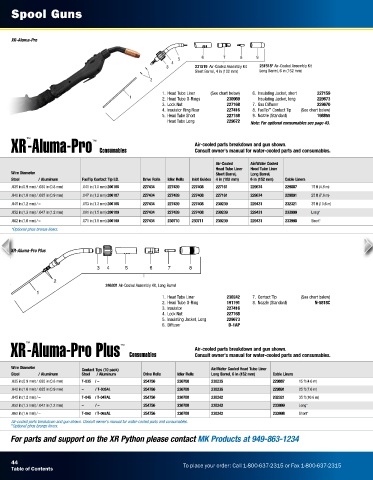

Page 44 - CJAYS-Specialist in Lastechniek- & Apparatuur| MILLER

Spool Guns

XR-Aluma-Pro

5 6 7 8 9
4
3 231519 Air-Cooled Assembly Kit 231518* Air-Cooled Assembly Kit
Short Barrel, 4 in (102 mm) Long Barrel, 6 in (152 mm)
2
1. Head Tube Liner (See chart below) 6. Insulating Jacket, short 227159
1 2. Head Tube O-Rings 230969 Insulating Jacket, long 229673
3. Lock Nut 227168 7. Gas Diffuser 229670
4. Insulator Ring Rear 227416 8. FasTip Contact Tip (See chart below)
™
5. Head Tube Short 227158 9. Nozzle (Standard) 198855
Head Tube Long 229672 Note: For optional consumables see page 43.
XR-Aluma-Pro ™ Consumables Air-cooled parts breakdown and gun shown.
™
Consult owner’s manual for water-cooled parts and consumables.
Air-Cooled Air/Water Cooled
Head Tube Liner Head Tube Liner
Wire Diameter Short Barrel, Long Barrel,
Steel / Aluminum FasTip Contact Tip I.D. Drive Rolls Idler Rolls Inlet Guides 4 in (102 mm) 6 in (152 mm) Cable Liners
.035 in (0.9 mm) / .030 in (0.8 mm) .041 in (1.0 mm) 206186 227434 227439 227408 227161 229674 229887 15 ft (4.6 m)
.040 in (1.0 mm) / .035 in (0.9 mm) .047 in (1.2 mm) 206187 227434 227439 227408 227161 229674 229891 25 ft (7.6 m)
.045 in (1.2 mm) / – .053 in (1.3 mm) 206188 227434 227439 227408 230239 229431 232321 35 ft (10.6 m)
.052 in (1.3 mm) / .047 in (1.2 mm) .061 in (1.5 mm) 206189 227434 227439 227408 230239 229431 233999 Long*
.062 in (1.6 mm) / – .071 in (1.8 mm) 206190 227434 230710 230711 230239 229431 233998 Short*
*Optional phos bronze liners.

XR-Aluma-Pro Plus

3 4 5 6 7 8
2
246301 Air-Cooled Assembly Kit, Long Barrel
1
1. Head Tube Liner 230242 7. Contact Tip (See chart below)
2. Head Tube O-Ring 191191 8. Nozzle (Standard) N-5818C
3. Insulator 227416
4. Lock Nut 227168
5. Insulating Jacket, Long 229673
6. Diffuser D-1AP

XR-Aluma-Pro Plus ™ Consumables Air-cooled parts breakdown and gun shown.
™
Consult owner’s manual for water-cooled parts and consumables.

Wire Diameter Contact Tips (10 pack) Air/Water Cooled Head Tube Liner
Steel / Aluminum Steel / Aluminum Drive Rolls Idler Rolls Long Barrel, 6 in (152 mm) Cable Liners
.035 in (0.9 mm) / .030 in (0.8 mm) T-035 / – 254756 230708 230235 229887 15 ft (4.6 m)
.040 in (1.0 mm) / .035 in (0.9 mm) – / T-035AL 254756 230708 230235 229891 25 ft (7.6 m)
.045 in (1.2 mm) / – T-045 / T-047AL 254756 230708 230242 232321 35 ft (10.6 m)
.052 in (1.3 mm) / .047 in (1.2 mm) – / – 254756 230708 230242 233999 Long*
.062 in (1.6 mm) / – T-062 / T-062AL 254756 230708 230242 233998 Short*
Figure 8-3. (Air) Head Tube Assembly Of AlumaPro Plus Gun
Air-cooled parts breakdown and gun shown. Consult owner's manual for water-cooled parts and consumables.
*Optional phos bronze liners.
For parts and support on the XR Python please contact MK Products at 949-863-1234

44 To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
