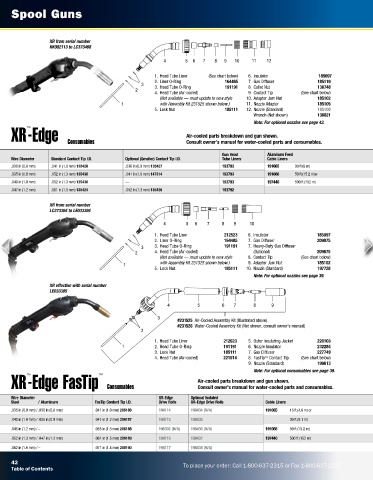

Page 42 - CJAYS-Specialist in Lastechniek- & Apparatuur| MILLER

Spool Guns

XR from serial number
KK082113 to LC373468

1. Head Tube Liner (See chart below) 6. Insulator 185097
2. Liner O-Ring 164485 7. Gas Diffuser 185110
3. Head Tube O-Ring 191191 8. Collet Nut 136748
4. Head Tube (Air-cooled) 9. Contact Tip (See chart below)
(Not available — must update to new style 10. Adapter Jam Nut 185102
with Assembly Kit 231525 shown below.) 11. Nozzle Adapter 185105
5. Lock Nut 185111 12. Nozzle (Standard) 185100
Wrench (Not shown) 136821
Note: For optional nozzles see page 43.
XR-Edge Consumables Air-cooled parts breakdown and gun shown.
™
Consult owner’s manual for water-cooled parts and consumables.

Gun Head Aluminum Feed
Wire Diameter Standard Contact Tip I.D. Optional (Smaller) Contact Tip I.D. Tube Liners Cable Liners
.030 in (0.8 mm) .041 in (1.0 mm) 135428 .036 in (0.9 mm) 135427 193793 191065 30 ft (9 m)
.035 in (0.9 mm) .052 in (1.3 mm) 135430 .041 in (1.0 mm) 147314 193793 191066 50 ft (15.2 m)w
.040 in (1.0 mm) .052 in (1.3 mm) 135430 — 193793 197440 500 ft (152 m)
.047 in (1.2 mm) .061 in (1.5 mm) 135424 .052 in (1.3 mm) 135429 193792

XR from serial number
LC373394 to LE033394

1. Head Tube Liner 212523 6. Insulator 185097
2. Liner O-Ring 164485 7. Gas Diffuser 209875
3. Head Tube O-Ring 191191 7. Heavy-Duty Gas Diffuser
4. Head Tube (Air-cooled) (Optional) 209875
(Not available — must update to new style 8. Contact Tip (See chart below)
with Assembly Kit 231525 shown below.) 9. Adapter Jam Nut 185102
5. Lock Nut 185111 10. Nozzle (Standard) 197728
Note: For optional nozzles see page 39.
XR effective with serial number
LE033395

1. Head Tube Liner 212523 5. Outer Insulating Jacket 220103
2. Head Tube O-Ring 191191 6. Nozzle Insulator 232284
3. Lock Nut 185111 7. Gas Diffuser 227749
4. Head Tube (Air-cooled) 221514 8. FasTip ™ Contact Tip (See chart below)
9. Nozzle (Standard) 199613
Note: For optional consumables see page 39.
XR-Edge FasTip Consumables Air-cooled parts breakdown and gun shown.
™
™
Consult owner’s manual for water-cooled parts and consumables.
Wire Diameter XR-Edge Optional Isolated
Steel / Aluminum FasTip Contact Tip I.D. Drive Rolls XR-Edge Drive Rolls Cable Liners
.035 in (0.9 mm) / .030 in (0.8 mm) .041 in (1.0 mm) 206186 194114 198434 (N/A) 191065 15 ft (4.6 m) or
.040 in (1.0 mm) / .035 in (0.9 mm) .047 in (1.2 mm) 206187 194115 198435 30 ft (9.1 m)
.045 in (1.2 mm) / – .053 in (1.3 mm) 206188 196302 (N/A) 198436 (N/A) 191066 50 ft (15.2 m)
.052 in (1.3 mm) / .047 in (1.2 mm) .061 in (1.5 mm) 206189 194116 198437 197440 500 ft (152 m)
.062 in (1.6 mm) / – .071 in (1.8 mm) 206190 194117 198438 (N/A)
42 To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
