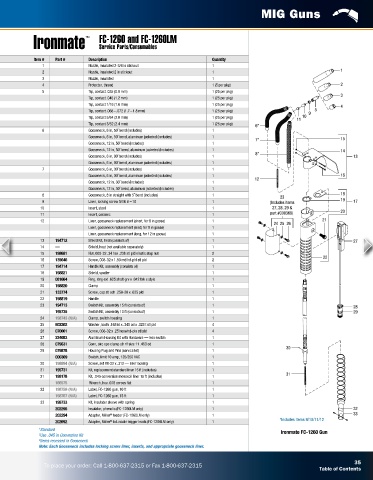

MIG Guns

Ironmate ™ FC-1260 and FC-1260LM

Service Parts/Consumables

Item # Part # Description Quantity
1 Nozzle, insulated 2-3/4 in stickout 1
2 Nozzle, insulated 2 in stickout 1
3 Nozzle, insulated 1
4 Protector, thread 1 (5 per pkg)
5 Tip, contact .035 (0.9 mm) 1 (25 per pkg)
Tip, contact .045 (1.2 mm) 1 (25 per pkg)
Tip, contact 1/16 (1.6 mm) 1 (25 per pkg)
Tip, contact .068 – .072 (1.7 – 1.8 mm) 1 (25 per pkg)
Tip, contact 5/64 (2.0 mm) 1 (25 per pkg)
Tip, contact 3/32 (2.4 mm) 1 (25 per pkg)
6 Gooseneck, 6 in, 50˚ bend (includes) 1
Gooseneck, 6 in, 50˚ bend, aluminum jacketed (includes) 1
Gooseneck, 12 in, 50˚ bend (includes) 1
Gooseneck, 12 in, 50˚ bend, aluminum jacketed (includes) 1
Gooseneck, 6 in, 90˚ bend (includes) 1
Gooseneck, 6 in, 90˚ bend, aluminum jacketed (includes) 1
7 Gooseneck, 6 in, 30˚ bend (includes) 1
Gooseneck, 6 in, 30˚ bend, aluminum jacketed (includes) 1
Gooseneck, 12 in, 30˚ bend (includes) 1
Gooseneck, 12 in, 30˚ bend, aluminum jacketed (includes) 1
8 Gooseneck, 8 in straight with 5˚ bend (includes) 1
9 Liner, locking screw 5/16 in – 18 1
10 Insert, steel 1
11 Insert, ceramic 1
12 Liner, gooseneck replacement (short, for 6 in goose) 1
Liner, gooseneck replacement (med, for 8 in goose) 1
Liner, gooseneck replacement (long, for 12 in goose) 1
13 194712 Shield Kit, heat (consists of) 1
14 — Shield, heat (not available separately) 1
15 198681 Nut, 008-32 .34 hex .23h stl pld elastic stop nut 2
16 135646 Screw, 008-32 x 1.50 rnd hd-phl stl pld 2
17 194714 Handle Kit, assembly (consists of) 1
18 198821 Shield, spatter 1
19 081664 Ring, rtng ext .625 shaft grv x .042 thk e style 1
20 198820 Clamp 1
21 133774 Screw, cap stl sch .250-20 x .625 pld 1
22 198819 Handle 1
23 194713 Switch Kit, assembly 15 ft (consists of) 1
195735 Switch Kit, assembly 10 ft (consists of) 1
24 198743 (N/A) Clamp, switch housing 1
25 602202 Washer, tooth .168 id x .340 od x .023 t stl pld 4
26 070001 Screw, 008-32 x .25 hexwhd-pln stl pld 4
27 224083 Aluminum Housing Kit with Hardware — less switch 1
28 079531 Conn, circ cpc clamp str rlf size 11 .453 od 1
29 079878 Housing Plug and Pins (service kit) 1
000369 Switch, limit 10 amp, 125/250 VAC 1
30 198894 (N/A) Screw, set #8-32 x .312 — liner locking 1
31 195731 Kit, replacement standard liner 15 ft (includes) 1
31 199178 Kit, .045 conversion monocoil liner 15 ft (includes) 1
166575 Wrench, hex .078 across flat 1
32 198759 (N/A) Label, FC-1260 gun, 10 ft 1
198767 (N/A) Label, FC-1260 gun, 15 ft 1
33 195733 Kit, insulator sleeve with spring 1
202295 Insulator, phenolic (FC-1260LM only) 1
202294 Adapter, Miller feeder (FC-1260LM only) 1
®
®
202692 Adapter, Miller to Lincoln trigger leads (FC-1260LM only) 1
1 Standard
2 Use .045 in Conversion Kit
3 Items recessed in Gooseneck
Note: Each Gooseneck includes locking screw liner, inserts, and appropriate gooseneck liner.
