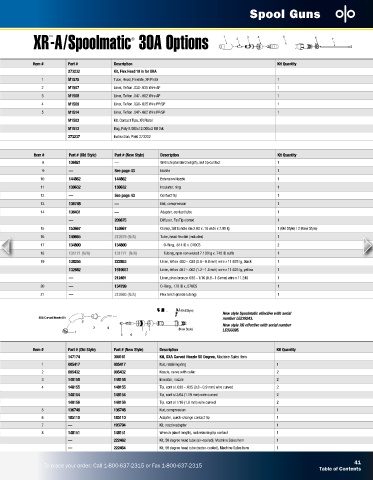

Spool Guns

XR-A/Spoolmatic 30A Options 1 2 3 4 5 6 7
™
®

Item # Part # Description Kit Quantity
273232 Kit, Flex Head 10 in for XRA
1 M1575 Tube, Head, Flexible, XR Pistol 1
2 M1507 Liner, Teflon .030-.035 Wire AP 1
3 M1508 Liner, Teflon .047-.062 Wire AP 1
4 M1509 Liner, Teflon .030-.035 Wire PP/SP 1
5 M1514 Liner, Teflon .047-.062 Wire PP/SP 1
M1502 Kit, Contact Tips, XR Pistol
M1513 Bag, Poly 5.000x12.000x3 Mil thk
273237 Instruction, Field 273232

Item # Part # (Old Style) Part # (New Style) Description Kit Quantity
8 136821 — Wrench (standard length), nut tip contact 1
9 — See page 43 Nozzle 1
10 144862 144862 Extension Nozzle 1
Gun Head 11 130632 130632 Insulator, ring 1
Wire Diameter Standard Contact Tip I.D. Optional (Smaller) Contact Tip I.D. Tube Liner 12 — See page 43 Contact Tip 1
.030 in (0.8 mm) .041 in (1.0 mm) 135428 .036 in (1.0 mm) 135427 136682 13 136748 — Nut, compression 1
.035 in (0.9 mm) .052 in (1.3 mm) 135430 .041 in (1.0 mm) 147314 136682 14 136431 — Adapter, contact tube 1
— 209875 Diffuser, FasTip slotted 1
.047 in (1.2 mm) .061 in (1.5 mm) 135424 .052 in (1.0 mm) 135429 136683
15 153667 153667 Clamp, Sst bundle dia 2.00 x .18 wide x 7.90 lg 1 (Old Style) / 2 (New Style)
.062 in (1.6 mm) .081 in (2.1 mm) 135425 .073 in (1.0 mm) 135426 136683 16 140665 212679 (N/A) Tube, head flexible (includes) 1
17 134800 134800 O-Ring, .614 ID x .070CS 2
18 131171 (N/A) 131171 (N/A) Tubing, npm convoluted 7.100 lg x .740 ID cuffs 1
19 138255 222853 Liner, teflon .030 – .035 (0.8 – 0.9 mm) wire x 11.625 lg, black 1
132682 1910031 Liner, teflon .047 – .062 (1.2 – 1.6 mm) wire x 11.625 lg, yellow 1
— 212401 Liner, phos bronze .030 – 1/16 (0.8 – 1.6 mm) wire x 11.249 1
20 — 134799 O-Ring, .176 ID x .070CS 1
21 — 212680 (N/A) Flex torch (inside tubing) 1

(Old Style)
New style Spoolmatic effective with serial
SXA Curved Nozzle Kit number LE239243.
2
New style XR effective with serial number
3 4 (New Style) LE033395.
1
5 6 7
Item # Part # (Old Style) Part # (New Style) Description Kit Quantity
147174 300161 Kit, SXA Curved Nozzle 50 Degree, Machine Sales Item
1 005417 005417 Nut, retaining ring 1
2 005432 005432 Nozzle, curve with collar 2
3 148158 148158 Insulator, nozzle 2
4 148155 148155 Tip, cont sl .030 – .035 (0.8 – 0.9 mm) wire curved 2
Wire Diameter XR-Pistol XR-Pistol All-Wire 148154 148154 Tip, cont sl 3/64 (1.19 mm) wire curved 2
Steel / Aluminum FasTip Contact Tip I.D. Drive Rolls Dual Groove Drive Rolls Cable Liners
148156 148156 Tip, cont sl 1/16 (1.6 mm) wire curved 2
.035 in (0.9 mm) / .030 in (0.8 mm) .041 in (1.0 mm) 206186 183357 136135 191065 15 ft (4.6 m) or
5 136748 136748 Nut, compression 1
.040 in (1.0 mm) / .035 in (0.9 mm) .047 in (1.2 mm) 206187 183357 136135 30 ft (9.1 m) 6 185110 185110 Adapter, quick-change contact tip 1
.045 in (1.2 mm) / – .053 in (1.3 mm) 206188 183357 136135 191066 50 ft (15.2 m) 7 — 193794 Kit, nozzle adapter 1
8 148151 148151 Wrench (short length), nut retaining tip contact 1
.052 in (1.3 mm) / .047 in (1.2 mm) .061 in (1.5 mm) 206189 183358 136135 197440 500 ft (152 m)
— 222462 Kit, 50 degree head tube (air-cooled), Machine Sales Item 1
.062 in (1.6 mm) / – .071 in (1.8 mm) 206190 183358 136135 — 222464 Kit, 50 degree head tube (water-cooled), Machine Sales Item 1
41
