MIG Guns

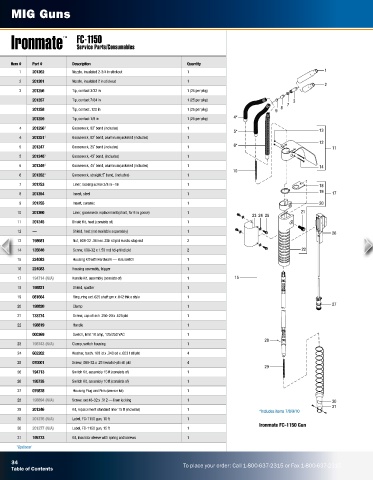

Ironmate ™ FC-1150

Service Parts/Consumables

Item # Part # Description Quantity
1 201262 Nozzle, insulated 2-3/4 in stickout 1
2 201261 Nozzle, insulated 2 in stickout 1
3 201256 Tip, contact 3/32 in 1 (25 per pkg)
201257 Tip, contact 7/64 in 1 (25 per pkg)
201258 Tip, contact .120 in 1 (25 per pkg)
201259 Tip, contact 1/8 in 1 (25 per pkg)
4 201250 1 Gooseneck, 82˚ bend (includes) 1
4 201251 1 Gooseneck, 82˚ bend, aluminum jacketed (includes) 1
5 201247 Gooseneck, 25˚ bend (includes) 1
5 201248 1 Gooseneck, 45˚ bend, (includes) 1
5 201249 1 Gooseneck, 45˚ bend, aluminum jacketed (includes) 1
6 201252 1 Gooseneck, straight 5˚ bend, (includes) 1
7 201253 Liner, locking screw 3/8 in – 16 1
8 201254 Insert, steel 1
9 201255 Insert, ceramic 1
10 201260 Liner, gooseneck replacement (short, for 6 in goose) 1
11 201245 Shield Kit, heat (consists of) 1
12 — Shield, heat (not available separately) 1
13 198681 Nut, 008-32 .34 hex .23h stl pld elastic stop nut 2
14 135646 Screw, 008-32 x 1.50 rnd hd-phl stl pld 2
15 224083 Housing Kit with Hardware — less switch 1
16 224083 Housing assembly, trigger 1
17 194714 (N/A) Handle Kit, assembly (consists of) 1
18 198821 Shield, spatter 1
19 081664 Ring, rtng ext .625 shaft grv x .042 thk e style 1
20 198820 Clamp 1
21 133774 Screw, cap stl sch .250-20 x .625 pld 1
22 198819 Handle 1
000369 Switch, limit 10 amp, 125/250 VAC 1
23 198743 (N/A) Clamp, switch housing 1
24 602202 Washer, tooth .168 id x .340 od x .023 t stl pld 4
25 070001 Screw, 008-32 x .25 hexwhd-pln stl pld 4
26 194713 Switch Kit, assembly 15 ft (consists of) 1
26 195735 Switch Kit, assembly 10 ft (consists of) 1
27 079878 Housing Plug and Pins (service kit) 1
28 198894 (N/A) Screw, set #8-32 x .312 — liner locking 1
29 201246 Kit, replacement standard liner 15 ft (includes) 1
30 201276 (N/A) Label, FC-1150 gun, 10 ft 1
30 201277 (N/A) Label, FC-1150 gun, 15 ft 1
31 195733 Kit, insulator sleeve with spring and screws 1
1 Optional
