MIG Guns

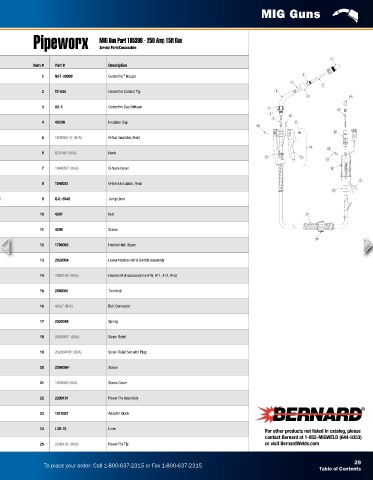

Pipeworx MIG Gun Part 195399 - 250 Amp 15ft Gun

Service Parts/Consumables

1
Item # Part # Description
™
1 NST-3800B Centerfire Nozzle 3 MADE IN U.S.A. NST
5
2
2 TT-035 Centerfire Contact Tip 6
4 25
3 DS-1 Centerfire Gas Diffuser 7
24
8 15
9
4 4523R Insulator Cap 11
10
22
5 1840057-2 (N/A) Q-Nut Insulator, Front
1
AMP
14 20
6 QT2-60 (N/A) Neck
1
12 13
21
7 1840057 (N/A) Q-Neck Cover 19
1
16
8 1840031 Q-Neck Insulator, Rear
23
9 QJL-3545 Jump Liner
10 4207 Nut 17

11 4209 Screw
18
12 1780062 Handle Half, Upper

13 2620054 Lower Handle Half & Switch Assembly

14 1880194 (N/A) Handle Kit (Includes items #10, #11, #12, #13)
1
15 2660001 Terminal

1
16 4932 (N/A) Butt Connector
17 2520048 Spring

18 2520007 (N/A) Strain Relief
1
1
19 2520047M (N/A) Strain Relief Set with Plug

20 2280056 1 Screw

21 1620003 (N/A) Screw Cover

22 2200101 Power Pin Assembly

23 1010027 Adapter Block

24 L3B-15 Liner For other products not listed in catalog, please
contact Bernard at 1-855-MIGWELD (644-9353)
25 2200135 (N/A) Power Pin Tip or visit BernardWelds.com
1
29
To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
