MIG Guns

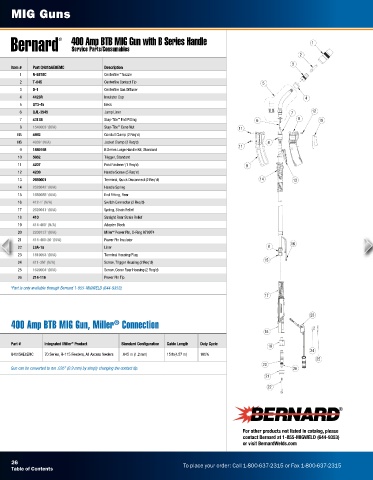

Bernard ® 400 Amp BTB MIG Gun with B Series Handle 1

Service Parts/Consumables
2
3
Item # Part Q4015AE8EMC Description
1 N-5818C Centerfire Nozzle
™
2 T-045 Centerfire Contact Tip 5
3 D-1 Centerfire Gas Diffuser
4 4423R Insulator Cap 4
5 QT3-45 Neck
6 QJL-3545 Jump Liner 7 12
™
7 4313B Stay-Tite End Fitting 6 9 10
™
1
8 1540003 (N/A) Stay-Tite Cone Nut 11
NS 4992 Conduit Clamp (2 Req'd)
NS 4939 (N/A) Jacket Clamp (2 Req'd) 8
1
11
9 1880198 B Series Large Handle Kit, Standard
10 5662 Trigger, Standard
11 4207 Post Fastener (1 Req'd) 9
12 4209 Handle Screw (5 Req'd)
13 2660001 Terminal, Quick Disconnect (2 Req'd) 14 13
14 2520042 (N/A) Handle Spring
1
15 1680088 (N/A) End Fitting, Rear
1
16 412-1 (N/A) Switch Connector (2 Req'd)
1
17 2520041 (N/A) Spring, Strain Relief
1
18 410 Straight Rear Strain Relief
19 414-400 (N/A) Adapter Block
1
20 2200137 (N/A) Miller Power Pin, O-Ring 079974
®
1
21 414-400-20 (N/A) Power Pin Insulator 16
1
22 L3A-15 Liner 8
1
23 1810053 (N/A) Terminal Housing/Plug
15
24 411-3M (N/A) Screw, Trigger Housing (2 Req'd)
1
25 1620004 (N/A) Screw, Cover Rear Housing (2 Req'd)
1
26 214-116 Power Pin Tip
Part is only available through Bernard 1-855-MIGWELD (644-9353).
1
17
23
400 Amp BTB MIG Gun, Miller Connection
®
18

Part # Integrated Miller Product Standard Configuration Cable Length Duty Cycle
®
19
24
Q4015AE8EMC 70 Series, R-115 Feeders, All Axcess feeders .045 in (1.2 mm) 15 ft (4.57 m) 100%
25
20
Gun can be converted to run .035” (0.9 mm) by simply changing the contact tip. 26
21
22

For other products not listed in catalog, please
contact Bernard at 1-855-MIGWELD (644-9353)
or visit BernardWelds.com
