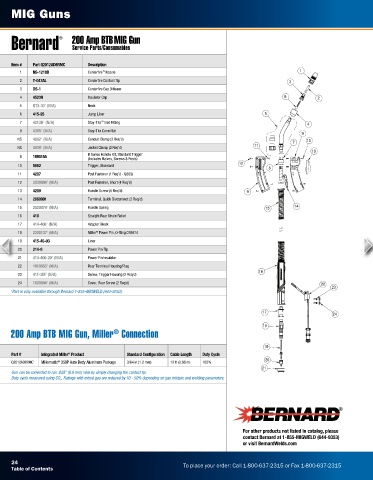

MIG Guns

Bernard ® 200 Amp BTBMIG Gun

Service Parts/Consumables

Item # Part Q2012AD8RMC Description
1 NS-1218B Centerfire Nozzle 1
™
2 T-047AL Centerfire Contact Tip 3
3 DS-1 Centerfire Gas Diffuser
4 4523R Insulator Cap 6 RD DS-1 2
5 QT3-30 (N/A) Neck
1
6 415-25 Jump Liner 5
1
™
7 4213B (N/A) Stay-Tite End Fitting 4
8 4305 (N/A) Stay-Tite Cone Nut
1
9
1
NS 4992 (N/A) Conduit Clamp (2 Req’d) 7 13
1
NS 4939 (N/A) Jacket Clamp (2 Req’d) 11
10
9 1880155 B Series Handle Kit, Standard Trigger
(Includes Halves, Screws & Posts)
12
10 5662 Trigger, Standard
8
11 4207 Post Fastener (1 Req’d - Q300)
12 2030004 (N/A) Post Fastener, Short (4 Req’d)
1
13 4209 Handle Screw (5 Req’d) 9
14 2660001 Terminal, Quick Disconnect (2 Req’d)
1
15 2520074 (N/A) Handle Spring 15 14
16 410 Straight Rear Strain Relief
17 414-400 (N/A) Adapter Block
1
1
®
18 2200137 (N/A) Miller Power Pin, O-Ring 079974
19 415-45-03 Liner
20 214-9 Power Pin Tip
1
21 414-400-20 (N/A) Power Pin Insulator
22 1810053 (N/A) Rear Terminal Housing/Plug
1
16
1
23 411-3M (N/A) Screw, Trigger Housing (2 Req'd)
1
24 1620004 (N/A) Cover, Rear Screw (2 Req'd) 22
23
1 Part is only available through Bernard 1-855-MIGWELD (644-9353).
17 24
18
200 Amp BTB MIG Gun, Miller Connection
®
19
Part # Integrated Miller Product Standard Configuration Cable Length Duty Cycle
®
20
Q2012AD8RMC Millermatic 350P Auto Body Aluminum Package 3/64 in (1.2 mm) 12 ft (3.66 m) 100%
®
21
Gun can be converted to run .035” (0.9 mm) wire by simply changing the contact tip.
Duty cycle measured using CO . Ratings with mixed gas are reduced by 10 - 50% depending on gas mixture and welding parameters.
2

For other products not listed in catalog, please
contact Bernard at 1-855-MIGWELD (644-9353)
or visit BernardWelds.com
