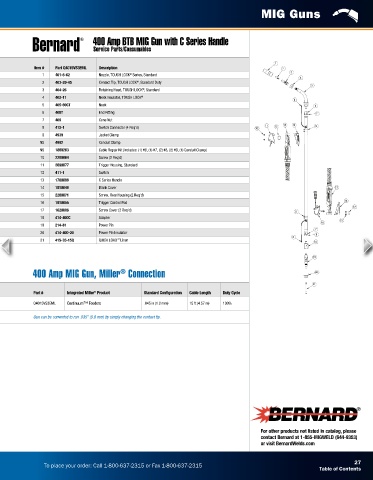

MIG Guns

Bernard ® 400 Amp BTB MIG Gun with C Series Handle

Service Parts/Consumables

1
Item # Part Q4015VS3EML Description 2
3
®
1 401-6-62 Nozzle, TOUGH LOCK Series, Standard
4
®
2 403-20-45 Contact Tip, TOUGH LOCK , Standard Duty
5
3 404-26 Retaining Head, TOUGH LOCK , Standard
®
4 402-11 Neck Insulator, TOUGH LOCK ®
8
5 405-60CT Neck 6
6 408T End Fitting 7
7 409 Cone Nut
8 412-1 Switch Connector (4 Req’d) 10 11 12 13 14 9
9 4939 Jacket Clamp
NS 4992 Conduit Clamp
NS 1880263 Cable Repair Kit (Includes: (1) #6, (1) #7, (2) #8, (2) #9, (1) Conduit Clamp)
10 2280064 Screw (2 Req’d)
11 2690077 Trigger Housing, Standard
12 411-1 Switch
13 1780086 C Series Handle
14 1810046 Blank Cover 13
15 2280071 Screw, Rear Housing (2 Req’d)
16 1810055 Trigger Control Pod 14
17
17 1620006 Screw Cover (2 Req’d) 9
18 414-400C Adapter
16 15
19 214-81 Power Pin
7
20 414-400-20 Power Pin Insulator 6
8
21 415-35-15Q QUICK LOAD Liner 18
™
19
400 Amp MIG Gun, Miller Connection 20
®
21
Part # Integrated Miller Product Standard Configuration Cable Length Duty Cycle
®
Q4015VS3EML Continuum™ Feeders .045 in (1.2 mm) 15 ft (4.57 m) 100%
Gun can be converted to run .035” (0.9 mm) by simply changing the contact tip.

For other products not listed in catalog, please
contact Bernard at 1-855-MIGWELD (644-9353)
or visit BernardWelds.com
