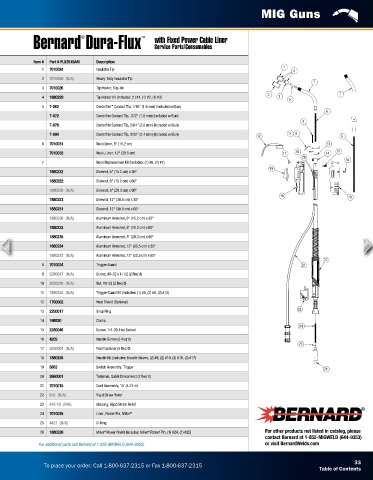

P. 33
MIG Guns
Bernard Dura-Flux ™ with Fixed Power Cable Liner
®
Service Parts/Consumables
Item # Part # FLX3515AM Description
1 7010024 Insulator Tip 1 4
2 7010059 (N/A) Heavy-Duty Insulator Tip
7
3 7010026 Tip Holder, Slip-On
2 7
4 1880229 Tip Holder Kit (Includes: (1) #1, (1) #2, (1) #3) 3
5
™
5 T-062 Centerfire Contact Tip, 1/16" (1.6 mm) (Included w/Gun)
6
T-072 Centerfire Contact Tip, .072" (1.8 mm) (Included w/Gun)
9
T-078 Centerfire Contact Tip, 5/64" (2.0 mm) (Included w/Gun)
T-094 Centerfire Contact Tip, 3/32" (2.4 mm) (Included w/Gun) 12 11 8 6
6 7010031 Neck Liner, 6" (15.2 cm) 13
7010032 Neck, Liner, 12" (30.5 cm) 17 10 14 15
20
7 Neck Replacement Kit (Includes: (1) #6, (1) #7) 16
19
1880232 Sleeved, 6" (15.2 cm) x 30º
1880222 Sleeved, 6" (15.2 cm) x 60º
1880230 (N/A) Sleeved, 8" (20.3 cm) x 90º
18 18
1880223 Sleeved, 12" (30.5 cm) x 30º
1880231 Sleeved, 12" (30.5 cm) x 60º
1880236 (N/A) Aluminum Armored, 6" (15.2 cm) x 30º
1880233 Aluminum Armored, 6" (15.2 cm) x 60º
1880235 Aluminum Armored, 8" (20.3 cm) x 90º
1880234 Aluminum Armored, 12" (30.5 cm) x 30º
1880237 (N/A) Aluminum Armored, 12" (30.5 cm) x 60º
22
8 7010034 Trigger Guard 21
9 2280047 (N/A) Screw, #8-32 x 1-1/2 (2 Req'd)
10 2030030 (N/A) Nut, #8-32 (2 Req'd)
11 1880224 (N/A) Trigger Guard Kit (Includes: (1) #8, (2) #9, (2) #10)
12 1760002 Heat Shield (Optional)
13 2250017 Snap Ring 23
14 198820 Clamp
24
15 2280046 Screw, 1/4-20, Hex Socket
16 4209 Handle Screw (3 Req'd)
25
17 2030004 (N/A) Post Fastener (3 Req'd)
18 1880225 Handle Kit (Includes: Handle Halves, (2) #9, (2) #10, (3) #16, (3) #17)
19 5662 Switch Assembly, Trigger 26
20 2660001 Terminal, Quick Disconnect (2 Req'd)
21 7010015 Cord Assembly, 15' (4.57 m)
22 610 (N/A) Rigid Strain Relief
23 416-15 (N/A) Housing, Rigid Strain Relief
24 7010035 Liner, Power Pin, Miller ®
25 4421 (N/A) O-Ring
26 1880226 Miller Power Pin Kit (Includes: Miller Power Pin, (1) #24, (1) #25) For other products not listed in catalog, please
®
®
contact Bernard at 1-855-MIGWELD (644-9353)
For additional parts call Bernard at 1-855-MIGWELD (644-9353). or visit BernardWelds.com
33
To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
