MIG Guns

® ™

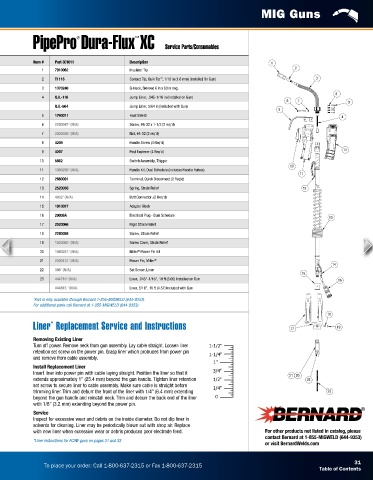

PipePro Dura-Flux XC Service Parts/Consumables

Item # Part 301011 Description 1
1 7010062 Insulator Tip 2
2 T1116 Contact Tip, Quik Tip , 1/16 in (1.6 mm) (Installed On Gun) 3
™
3 1370240 Q-Neck, Sleeved 6 in x 60 in deg.
8
4 QJL-116 Jump Liner, .045-1/16 in (Installed on Gun)
6 7 9
QJL-564 Jump Liner, 5/64 in (Included with Gun)
5
5 1760011 Heat Shield 4
6 2280047 (N/A) Screw, #8-32 x 1-1/2 (2 req'd)
1
1
7 2030030 (N/A) Nut, #8-32 (2 req'd)
8 4209 Handle Screw (4 Req'd)
9 4207 Post Fastener (4 Req'd) 11
10 5662 Switch Assembly, Trigger
10
11 1880256 (N/A) Handle Kit, Dual Schedule (Includes Handle Halves)
1
11
12 2660001 Terminal, Quick Disconnect (2 Req'd)
13 2520056 Spring, Strain Relief 12
14 4932 (N/A) Butt Connector, (2 Req'd)
1
15 1010027 Adapter Block
16 20006A Electrical Plug - Dual Schedule
13
17 2520066 Rigid Strain Relief
18 2280056 Screw, Strain Relief
19 1620003 (N/A) Screw Cover, Strain Relief
1
20 1880251 (N/A) Miller Power Pin Kit
®
1
21 2200131 (N/A) Power Pin, Miller ®
1
14
22 396 (N/A) Set Screw, Liner
1
15
1
23 444710 (N/A) Liner, .045”-1/16”, 10 ft (3.05) Installed on Gun 16
444815 (N/A) Liner, 5/16”, 15 ft (4.57) Included with Gun
1
1 Part is only available through Bernard 1-855-MIGWELD (644-9353).
For additional parts call Bernard at 1-855-MIGWELD (644-9353).
18
Liner Replacement Service and Instructions 17 19
*
Removing Existing Liner
Turn off power. Remove neck from gun assembly. Lay cable straight. Loosen liner " 2 / 1 - 1
retention set screw on the power pin. Grasp liner which protrudes from power pin " 4 / 1 - 1
and remove from cable assembly.
" 1
Install Replacement Liner
Insert liner into power pin with cable laying straight. Position the liner so that it " 4 / 3 21 20
extends approximately 1” (25.4 mm) beyond the gun handle. Tighten liner retention " 2 / 1 22
set screw to secure liner to cable assembly. Make sure cable is straight before " 4 / 1
trimming liner. Trim and deburr the front of the liner with 1/4” (6.4 mm) extending 23
beyond the gun handle and reinstall neck. Trim and deburr the back end of the liner 0
with 1/8” (3.2 mm) extending beyond the power pin.
Service
Inspect for excessive wear and debris on the inside diameter. Do not dip liner in
solvents for cleaning. Liner may be periodically blown out with shop air. Replace
with new liner when excessive wear or debris produces poor electrode feed. For other products not listed in catalog, please
contact Bernard at 1-855-MIGWELD (644-9353)
*Liner instructions for FCAW guns on pages 31 and 33
or visit BernardWelds.com
