MIG Guns

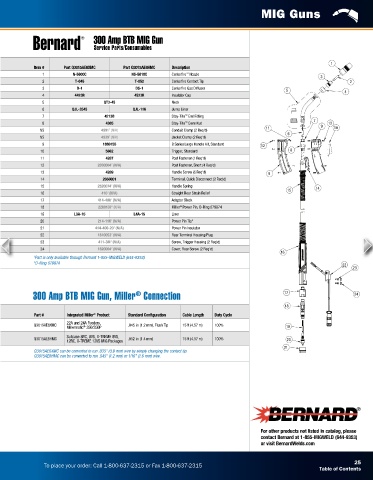

Bernard ® 300 Amp BTB MIG Gun

Service Parts/Consumables

1
Item # Part Q3015AE8XMC Part Q3015AE8HMC Description
1 N-5800C NS-5818C Centerfire Nozzle
™
3
2 T-045 T-052 Centerfire Contact Tip 2
3 D-1 DS-1 Centerfire Gas Diffuser 5 4
4 4423R 4523R Insulator Cap
5 QT3-45 Neck
6 QJL-3545 QJL-116 Jump Liner
7 4213B Stay-Tite End Fitting
™
7
™
8 4305 Stay-Tite Cone Nut 9 13
NS 4991 (N/A) Conduit Clamp (2 Req'd) 11 10
1
6
NS 4939 (N/A) Jacket Clamp (2 Req'd)
1
9 1880155 B Series Large Handle Kit, Standard 12
10 5662 Trigger, Standard 8
11 4207 Post Fastener (1 Req'd)
12 2030004 (N/A) Post Fastener, Short (4 Req'd)
1
13 4209 Handle Screw (5 Req'd) 9
14 2660001 Terminal, Quick Disconnect (2 Req'd)
15 2520074 (N/A) Handle Spring
1
15 14
1
16 410 (N/A) Straight Rear Strain Relief
17 414-400 (N/A) Adapter Block
1
1
®
18 2200137 (N/A) Miller Power Pin, O-Ring 079974
19 L3A-15 L4A-15 Liner
20 214-116 (N/A) Power Pin Tip 2
1
1
21 414-400-20 (N/A) Power Pin Insulator
22 1810053 (N/A) Rear Terminal Housing/Plug
1
23 411-3M (N/A) Screw, Trigger Housing (2 Req'd)
1
1
24 1620004 (N/A) Cover, Rear Screw (2 Req'd)
16
1 Part is only available through Bernard 1-855-MIGWELD (644-9353).
2 O-Ring 079974
22
23
300 Amp BTB MIG Gun, Miller Connection 17 24
®
18
Part # Integrated Miller Product Standard Configuration Cable Length Duty Cycle
®
Q3015AE8XMC 22A and 24A Feeders, .045 in (1.2 mm), Flush Tip 15 ft (4.57 m) 100%
®
Millermatic 350/350P 19
Q3015AE8HMC Suitcase 8RC, 8VS, X-TREME 8VS, .052 in (1.4 mm) 15 ft (4.57 m) 100% 20
12RC, X-TREME 12VS MIG Packages
21
Q3015AE8XMC can be converted to run .035” (0.9 mm) wire by simply changing the contact tip.
Q3015AE8HMC can be converted to run .045” (1.2 mm) or 1/16” (1.6 mm) wire.

For other products not listed in catalog, please
contact Bernard at 1-855-MIGWELD (644-9353)
or visit BernardWelds.com

25
To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
