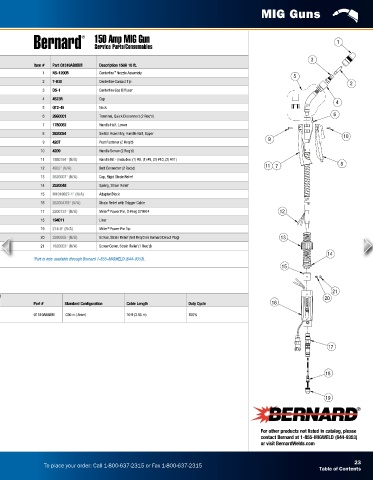

MIG Guns

Bernard ® 150 Amp MIG Gun 1

Service Parts/Consumables
3
Item # Part Q1510AB8BM Description 150A 10 ft.
™
1 NS-1200B Centerfire Nozzle Assembly
5
2 T-030 Centerfire Contact Tip 2
3 DS-1 Centerfire Gas Diffuser
4 4523R Cap
4
5 QT2-45 Neck
6 2660001 Terminal, Quick Disconnect (2 Req'd) 6
7 1780062 Handle Half, Lower
8 2620054 Switch Assembly, Handle Half, Upper
9 10
9 4207 Post Fastener (2 Req'd)
10 4209 Handle Screw (2 Req'd)
1
11 1880194 (N/A) Handle Kit - (Includes: (1) #8, (1) #9, (2) #10, (2) #11)
11 7 8
1
12 4932 (N/A) Butt Connector (2 Req'd)
1
13 2520007 (N/A) Cap, Rigid Strain Relief
14 2520048 Spring, Strain Relief
15 M1010027-1 (N/A) Adapter Block
1
1
16 2520047M (N/A) Strain Relief with Trigger Cable
®
17 2200137 (N/A) Miller Power Pin, O-Ring 079974 12
1
18 194011 Liner
®
1
19 214-9 (N/A) Miller Power Pin Tip
20 2280065 (N/A) Screw, Strain Relief (Not Req'd on Bernard Direct Plug) 13
1
21 1620003 (N/A) Screw Cover, Strain Relief (1 Req'd)
1
14
1 Part is only available through Bernard 1-855-MIGWELD (644-9353).
15
21
20
Part # Standard Configuration Cable Length Duty Cycle 16
Q1510AB8BM .030 in (.8mm) 10 ft (3.05 m) 100%

AMP
17

18

19

For other products not listed in catalog, please
contact Bernard at 1-855-MIGWELD (644-9353)
or visit BernardWelds.com
