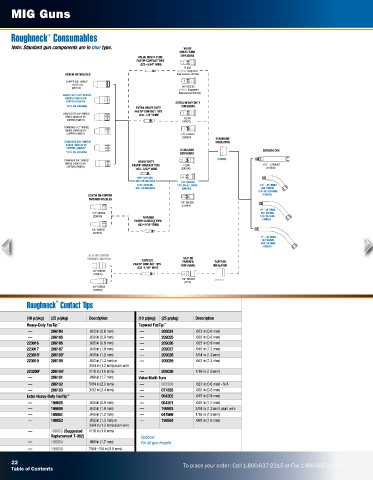

MIG Guns

Roughneck Consumables
®
Note: Standard gun components are in blue type. VALUE
MULTI-TURN
VALUE MULTI-TURN DIFFUSERS
FASTIP CONTACT TIPS
.023–5/64" WIRE
FLUSH
(199622 Suggested
SCREW ON NOZZLES Replacement 206196)
COPPER 5/8" ORIFICE
15/16" O.D.
(207313) 1/8" RECESS
(199621 Suggested
Replacement 206195)
HEAVY DUTY 5/8" ORIFICE
BRASS (199614) OR
COPPER (199618)* EXTRA HEAVY DUTY
*STD. ON 500/600A EXTRA HEAVY DUTY DIFFUSERS
FASTIP CONTACT TIPS
HEAVY DUTY 3/4" ORIFICE .035–1/8" WIRE
BRASS (#99612) OR FLUSH
COPPER (199617) (199623)
STANDARD 1/2" ORIFICE
BRASS (199610) OR
COPPER (199615) 1/8" RECESS
(198857) STANDARD
STANDARD 5/8" ORIFICE INSULATOR
BRASS (199613) OR
COPPER (198855)* STANDARD GOOSENECKS
*STD. ON 300/400A DIFFUSERS
STANDARD 3/4" ORIFICE HEAVY DUTY (198856)
BRASS (199611) OR FASTIP CONTACT TIPS 6.0" – STRAIGHT
COPPER (199616) FLUSH
.023–3/32" WIRE (206196) (213450)
.045" (206188)
STD. ON 300/400A 1/8" RECESS
1/16" (206190) STD. ON ALL GUNS 4.5" – 48˚ BEND
STD. ON 500/600A (206195) 360˚ SWIVEL
STD. ON 300/400A
SCREW ON COPPER (199625)
TAPERED NOZZLES
1/4" RECESS
(210664)
6" – 48˚ BEND
1/2" ORIFICE 360˚ SWIVEL
(209036) TAPERED STD. ON 500A
FASTIP CONTACT TIPS (199626)
.023–1/16" WIRE
3/8" ORIFICE
(209035)
8" – 48˚ BEND
360˚ SWIVEL
STD. ON 600A
(199627)
SLIP ON COPPER
TAPERED NOZZLES SLIP ON
TAPERED TAPERED TAPERED
FASTIP CONTACT TIPS DIFFUSERS INSULATOR
.023–1/16" WIRE
1/2" ORIFICE
(209033)
1/8" RECESS (209047)
(D218)
3/8" ORIFICE
(209034)
Roughneck Contact Tips
®
(10 p/pkg) (25 p/pkg) Description (10 p/pkg) (25 p/pkg) Description
Heavy-Duty FasTip ™ Tapered FasTip ™
— 206184 .023 in (0.6 mm) — 209024 .023 in (0.6 mm)
— 206185 .030 in (0.8 mm) — 209025 .030 in (0.8 mm)
223016 206186 .035 in (0.9 mm) — 209026 .035 in (0.9 mm)
223017 206187 .040 in (1.0 mm) — 209027 .045 in (1.2 mm)
223018 1 206188 1 .045 in (1.2 mm) — 209028 3/64 in (1.2 mm)
223019 206189 .052 in (1.3 mm) or — 209029 .052 in (1.3 mm)
3/64 in (1.2 mm) alum wire
223200 2 206190 2 1/16 in (1.6 mm) — 209030 1/16 in (1.6 mm)
— 206191 .068 in (1.7 mm) Value Multi-Turn
— 206192 5/64 in (2.0 mm) — 087300 .023 in (0.6 mm) - N/A
— 206193 3/32 in (2.4 mm) — 071825 .030 in (0.8 mm)
Extra Heavy-Duty FasTip ™ — 054202 .035 in (0.9 mm)
— 199605 .035 in (0.9 mm) — 054201 .045 in (1.2 mm)
— 199606 .040 in (1.0 mm) — 199593 3/64 in (1.2 mm) alum wire
— 198851 .045 in (1.2 mm) — 047566 1/16 in (1.6 mm)
— 198852 .052 in (1.3 mm) or — 199594 .068 in (1.8 mm)
3/64 in (1.2 mm) alum wire
— 198853 (Suggested 1/16 in (1.6 mm)
Replacement T-062) Optional
— 198854 .068 in (1.7 mm) For all gun lengths
— 199609 7/64 – 1/8 in (2.8 mm)
