MIG Guns

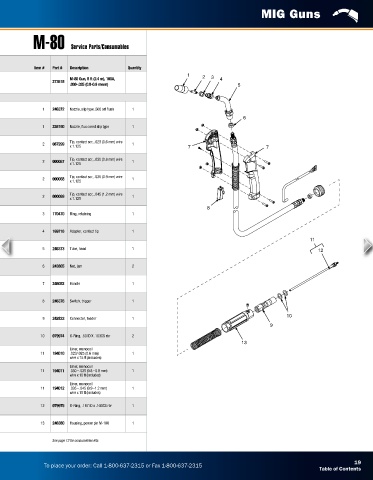

M-80 Service Parts/Consumables

Item # Part # Description Quantity
1
M-80 Gun, 8 ft (2.4 m), 100A, 2 3 4
273618
.030-.035 (0.8-0.9 mwm) 5

1 246372 Nozzle, slip type .500 orf flush 1
6
1 226190 Nozzle, flux cored slip type 1

2 087299 Tip, contact scr, .023 (0.6 mm) wire 1 7 7
x 1.125

2 000067 Tip, contact scr, .030 (0.8 mm) wire 1
x 1.125

2 000068 Tip, contact scr, .035 (0.9 mm) wire 1
x 1.125
2 000069 Tip, contact scr, .045 (1.2 mm) wire 1
x 1.125
8
3 170470 Ring, retaining 1

4 169716 Adapter, contact tip 1
11
5 246373 Tube, head 1
12
6 243865 Nut, jam 2

7 246082 Handle 1

8 246376 Switch, trigger 1

9 242833 Connector, feeder 1 10
9
10 079974 O-Ring, .50 ID X .103CS rbr 2
13
Liner, monocoil
11 194010 .023/.025 (0.6 mm) 1
wire x 15 ft (includes)
Liner, monocoil
11 194011 .030 – .035 (0.8 – 0.9 mm) 1
wire x 15 ft (includes)
Liner, monocoil
11 194012 .035 – .045 (0.9 –1.2 mm) 1
wire x 15 ft (includes)
12 079975 O-Ring, .187 ID x .103CS rbr 1

13 246380 Housing, power pin M-100 1

See page 12 for consumables kits

19
