MIG Guns

™

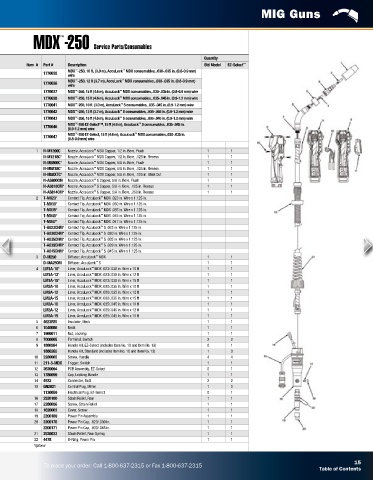

MDX -250 Service Parts/Consumables
Quantity
Item # Part # Description Std Model EZ-Select ™
MDX -250, 10 ft. (3.0 m), AccuLock MDX consumables, .030-.035 in. (0.8-0.9 mm)
™
™
1770035
wire
™
™
1770036 MDX -250, 12 ft (3.7 m), AccuLock MDX consumables, .030-.035 in. (0.8-0.9 mm)
wire
1770037 MDX -250, 15 ft (4.6 m), AccuLock MDX consumables, .030-.035 in. (0.8-0.9 mm) wire
™
™
1770038 MDX -250, 15 ft (4.6 m), AccuLock MDX consumables, .035-.045 in. (0.9-1.2 mm) wire
™
™
1770041 MDX -250, 10 ft. (3.0 m), AccuLock S consumables, .035-.045 in. (0.9-1.2 mm) wire
™
™
™
1770042 MDX -250, 12 ft (3.7 m), AccuLock S consumables, .035-.045 in. (0.9-1.2 mm) wire
™
1770043 MDX -250, 15 ft (4.6 m), AccuLock S consumables, .035-.045 in. (0.9-1.2 mm) wire
™
™
™
™
1770046 MDX -250 EZ-Select™, 15 ft (4.6 m), AccuLock S consumables, .035-.045 in.
(0.9-1.2 mm) wire
™
™
1770047 MDX -250 EZ-Select, 15 ft (4.6 m), AccuLock MDX consumables,.030-.035 in.
(0.8-0.9 mm) wire
1 N-M1200C Nozzle, AccuLock MDX Copper, 1/2 in. Bore, Flush 1 1
™
™
N-M1218C* Nozzle, AccuLock MDX Copper, 1/2 in. Bore, .125 in. Recess 1 1
N-M5800C* Nozzle, AccuLock MDX Copper, 5/8 in. Bore, Flush 1 1
™
N-M5818C* Nozzle, AccuLock MDX Copper, 5/8 in. Bore, .125 in. Recess 1 1
™
N-M58XTC* Nozzle, AccuLock MDX Copper, 5/8 in. Bore, .125 in. Stick Out 1 1
™
N-A5800CM Nozzle, AccuLock S Copper, 5/8 in. Bore, Flush 1 1
™
N-A5818CM* Nozzle, AccuLock S Copper, 5/8 in. Bore, .125 in. Recess 1 1
™
™
N-A5814CM* Nozzle, AccuLock S Copper, 5/8 in. Bore, .250 in. Recess 1 1
2 T-M023* Contact Tip, AccuLock MDX .023 in. Wire x 1.125 in.
™
™
T-M030* Contact Tip, AccuLock MDX .030 in. Wire x 1.125 in.
T-M035* Contact Tip, AccuLock MDX .035 in. Wire x 1.125 in.
™
T-M045* Contact Tip, AccuLock MDX .045 in. Wire x 1.125 in.
™
T-M047* Contact Tip, AccuLock MDX .047 in. Wire x 1.125 in.
™
™
T-A023CHM* Contact Tip, AccuLock S .023 in. Wire x 1.125 in.
T-A030CHM* Contact Tip, AccuLock S .030 in. Wire x 1.125 in.
™
™
T-A035CHM* Contact Tip, AccuLock S .035 in. Wire x 1.125 in.
T-A039CHM* Contact Tip, AccuLock S .039 in. Wire x 1.125 in.
™
T-A045CHM* Contact Tip, AccuLock S .045 in. Wire x 1.125 in.
™
3 D-M250 Diffuser, AccuLock MDX 1 1
™
D-MA250M Diffuser, AccuLock S 1 1
™
4 LM1A-10* Liner, AccuLock MDX .023/.030 in. Wire x 10 ft 1 1
™
LM1A-12* Liner, AccuLock MDX .023/.030 in. Wire x 12 ft 1 1
™
LM1A-15* Liner, AccuLock MDX .023/.030 in. Wire x 15 ft 1 1
™
LM2A-10 Liner, AccuLock MDX .030/.035 in. Wire x 10 ft 1 1
™
LM2A-12 Liner, AccuLock MDX .030/.035 in. Wire x 12 ft 1 1
™
LM2A-15 Liner, AccuLock MDX .030/.035 in. Wire x 15 ft 1 1
™
LM3A-10 Liner, AccuLock MDX .035/.045 in. Wire x 10 ft 1 1
™
LM3A-12 Liner, AccuLock MDX .035/.045 in. Wire x 12 ft 1 1
™
LM3A-15 Liner, AccuLock MDX .035/.045 in. Wire x 15 ft 1 1
™
5 4623RM Insulator, Neck 1 1
6 1040086 Neck 1 1
7 1960011 Nut, Locking 1 1
8 7000005 Terminal, Switch 2 2
9 1880264 Handle Kit, EZ-Select (includes Item No. 10 and Item No. 13) 0 1
1880265 Handle Kit, Standard (includes Item No. 10 and Item No. 13) 1 0
10 2280065 Screw, Handle 4 4
11 211-5-MDX Trigger, Switch 1 1
12 2620094 PCB Assembly, EZ-Select 0 1
13 1780099 Cap, Locking Handle 1 1
14 4932 Connector, Butt 2 2
15 GN2021 Control Plug, Miller 1 0
1130059 Electrical Plug, EZ-Select 0 1
16 2520100 Strain Relief, Rear 1 1
17 2280056 Screw, Strain Relief 1 1
18 1620003 Cover, Screw 1 1
19 2200169 Power Pin Assembly 1 1
20 2200170 Power Pin Cap, .023/.030 in. 1 1
2200171 Power Pin Cap, .030/.045 in. 1 1
21 2520033 Strain Relief, Rear Spring 1 1
22 4478 O-Ring, Power Pin 1 1
*Optional
