MIG Guns

™

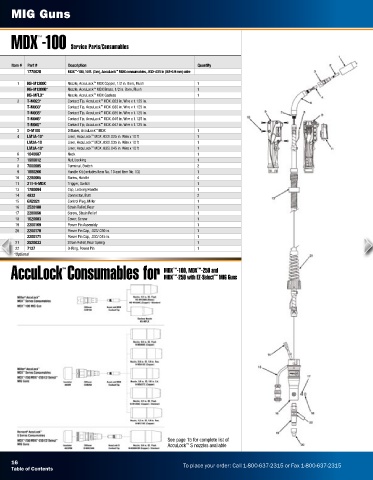

MDX -100 Service Parts/Consumables

Item # Part # Description Quantity
1770028 MDX -100, 10 ft. (3 m), AccuLock MDX consumables, .030-.035 in (0.8-0.9 mm) wire
™
™
1 NS-M1200C Nozzle, AccuLock MDX Copper, 1/2 in. Bore, Flush 1
™
™
NS-M1200B* Nozzle, AccuLock MDX Brass, 1/2 in. Bore, Flush 1
NS-MFLX* Nozzle, AccuLock MDX Gasless 1
™
2 T-M023* Contact Tip, AccuLock MDX .023 in. Wire x 1.125 in.
™
T-M030* Contact Tip, AccuLock MDX .030 in. Wire x 1.125 in.
™
T-M035* Contact Tip, AccuLock MDX .035 in. Wire x 1.125 in.
™
T-M045* Contact Tip, AccuLock MDX .045 in. Wire x 1.125 in.
™
™
T-M047* Contact Tip, AccuLock MDX .047 in. Wire x 1.125 in.
™
3 D-M100 Diffuser, AccuLock MDX 1
™
4 LM1A-10* Liner, AccuLock MDX .023/.025 in. Wire x 10 ft 1
LM2A-10 Liner, AccuLock MDX .030/.035 in. Wire x 10 ft 1
™
LM3A-10* Liner, AccuLock MDX .035/.045 in. Wire x 10 ft 1
™
6 1040087 Neck 1
7 1960012 Nut, Locking 1
8 7000005 Terminal, Switch 2
9 1880266 Handle Kit (includes Item No. 10 and Item No. 13) 1
10 2280065 Screw, Handle 4
11 211-5-MDX Trigger, Switch 1
13 1780094 Cap, Locking Handle 1
14 4932 Connector, Butt 2
15 GN2021 Control Plug, Miller 1
16 2520100 Strain Relief, Rear 1
17 2280056 Screw, Strain Relief 1
18 1620003 Cover, Screw 1
19 2200169 Power Pin Assembly 1
20 2200170 Power Pin Cap, .023/.030 in. 1
2200171 Power Pin Cap, .030/.045 in. 1
21 2520033 Strain Relief, Rear Spring 1
22 7127 O-Ring, Power Pin 1
*Optional
AccuLock Consumables for MDX -100, MDX -250 and
™
™
™
MDX -250 with EZ-Select MIG Guns
™
™

See page 15 for complete list of
AccuLock S nozzles available
™
