Welding Protection

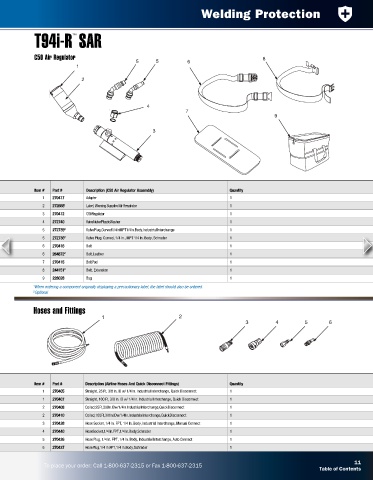

T94i-R SAR
™

C50 Air Regulator 8
5 5 6
1

2

4
7
9

3

Item # Part # Description (C50 Air Regulator Assembly) Quantity
1 270417 Adapter 1
2 272668 1 Label, Warning Supplied Air Respirator 1
3 270412 C50Regulator 1
4 272740 ValveNutw/PlasticWasher 1
5 272735 2 ValvePlug,Curved1/4inMPT1/4In.Body,IndustrialInterchange 1
5 272736 2 Valve Plug, Curved, 1/4 In., MPT 1/4 In. Body, Schrader 1
6 270416 Belt 1
6 264872 2 Belt,Leather 1
7 270415 BeltPad 1
8 244151 2 Belt, Extension 1
9 228028 Bag 1
When ordering a component originally displaying a precautionary label, the label should also be ordered.
1
Optional
2
Hoses and Fittings

1 2
3 4 5 6

Item # Part # Description (Airline Hoses And Quick Disconnect Fittings) Quantity
1 270405 Straight, 25 Ft, 3/8 In. ID w/ 1/4 In. Industrial Interchange, Quick Disconnect 1
1 270407 Straight, 100 Ft, 3/8 In. ID w/ 1/4 In. Industrial Interchange, Quick Disconnect 1
2 270408 Coiled,25Ft,3/8In.IDw/1/4In.IndustrialInterchange,QuickDisconnect 1
2 270410 Coiled,100Ft,3/8In.IDw/1/4In.IndustrialInterchange,QuickDisconnect 1
3 270438 Hose Socket, 1/4 In. FPT, 1/4 In. Body, Industrial Interchange, Manual Connect 1
4 270440 HoseSocket,1/4 In.FPT,1/4 In.Body,Schrader 1
5 270436 Hose Plug, 1/4 In. FPT, 1/4 In. Body, Industrial Interchange, Auto Connect 1
6 270437 HosePlug,1/4 In.FPT,1/4 In.Body,Schrader 1
11
To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
