Welding Protection

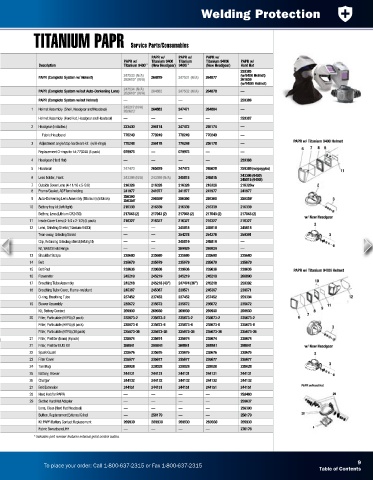

TITANIUM PAPR Service Parts/Consumables

PAPR w/ PAPR w/ PAPR w/
PAPR w/ Titanium 9400 Titanium Titanium 9400i PAPR w/
Description Titanium 9400 ™ (New Headgear) 9400i ™ (New Headgear) Hard Hat
259385
1 PAPR (Complete System w/ Helmet) 247533 (N/A) 264879 247531 (N/A) 264877 (w/9400 Helmet)
261659
262615* (N/A)
(w/9400i Helmet)
13 247534 (N/A) 24
PAPR (Complete System w/out Auto-Darkening Lens) 26264882 16 247532 (N/A) 264878 —
17 14 262616* (N/A)
PAPR (Complete System w/out Helmet) — — 259386
1 Helmet Assembly (Shell, Headgear and Headseal) 245217 (N/A) 264883 247471 264884 —
262623
*
18
Helmet Assembly (Hard Hat, Headgear and Headseal) 15 — — — — 259387
2 Headgear (Includes:) 19 223430 256174 247472 256174 —
Fabric Headband 27 770249 Hard Hat 9400, 9400i 770249 —
770249
770249

3 Adjustment angle/stop hardware kit (w/O-rings) 770248 256178 770248 256178 — PAPR w/ Titanium 9400 Helmet
26
21 20 6 7 8 9
Replacement O-rings for kit 770248 (5 pack) 079975 — 079975 — —
22 Head Seal
4 Headgear (Hard Hat) — — — — 259388
23
5 Headseal 247470 265629 5 247473 265628 259389 (w/goggles) 11
6 Lens holder, Front 243396 (N/A) 243369 (N/A) 245815 245815 243396 (9400)
245815 (9400i)
7 Outside Cover Lens (4-11/16 x 5-5/8) 216326 216326 216326 216326 216326w 2
8 Frame/Gasket, ADF lens holding 241977 241977 241977 241977 241977
9 Auto-Darkening Lens Assembly (Titanium) (Infotrak) 256360 256359 * 256360 256360 256359 * 3
256359 *
10 Battery tray kit (left/right) 216339 216339 216339 216339 216339
Battery, Lens (Lithium CR2450) 217043 (2) 217043 (2) 217043 (2) 217043 (2) 217043 (2)
w/ New Headgear
11 Inside Cover Lens (4-1/4 x 2-1/2) (5 pack) 216327 216327 216327 216327 216327
2
12 Lens, Grinding Shield (Titanium 9400i) — — 245818 245818 245818
Tear-away, Grinding Shield — — 254278 254278 259391 3
Clip, Retaining Grinding shield (left/right) — — 245819 245819 —
Kit, Weld Shield Hinge — — 269929 269929 —
13 Shoulder Straps 235680 235680 235680 235680 235680
14 Belt 235679 235679 235679 235679 235679
15 Belt Pad 239636 239636 239636 239636 239636 PAPR w/ Titanium 9400i Helmet
16 Flowmeter 245219 245219 245219 245219 260890
17 Breathing Tube Assembly 245218 245218 (43”) 247474 (36”) 245218 259392 10
18 Breathing Tube Cover, Flame-resistant 245367 245367 239571 245367 239571
O-ring, Breathing Tube 237452 237452 237452 237452 259394 12
2
19 Blower Assembly 235672 235672 235672 235672 235672 11
9
Kit, Battery Contact 269930 269930 269930 269930 269930 8
20 Filter, Particulate (HEPA) (2 pack) 235673-2 235673-2 235673-2 235673-2 235673-2 6 6 7
Filter, Particulate (HEPA) (6 pack) 235673-6 235673-6 235673-6 235673-6 235673-6
3
Filter, Particulate (HEPA) (36 pack) 235673-36 235673-36 235673-36 235673-36 235673-36
21 Filter, Prefilter (foam) (6 pack) 235674 235674 235674 235674 235674
21 Filter, Prefilter NUIS OV 268841 268841 268841 268841 268841 w/ New Headgear
22 Spark Guard 235676 235676 235676 235676 235676 2
23 Filter Cover 235677 235677 235677 235677 235677
3
24 Tool Bag 228028 228028 228028 228028 228028
25 Battery, Blower 244131 244131 244131 244131 244131
26 Charger 244132 244132 244132 244132 244132
PAPR w/Hard Hat
27 Belt Extension 244151 244151 244151 244151 244151
28 Hard Hat (for PAPR) — — — — 259460 29
29 Slotted Hard Hat Adapter — — — — 259637
Lens, Clear (Hard Hat Headseal) — — — — 259390
Button, Replacement External Grind — 256179 — — 256179 28
Kit PAPR Battery Contact Replacement 269930 269930 269930 269930 269930
Fabric Sweatband, HH — — — — 270176 4
* Indicates part number features external grind control button.

9
To place your order: Call 1-800-637-2315 or Fax 1-800-637-2315
