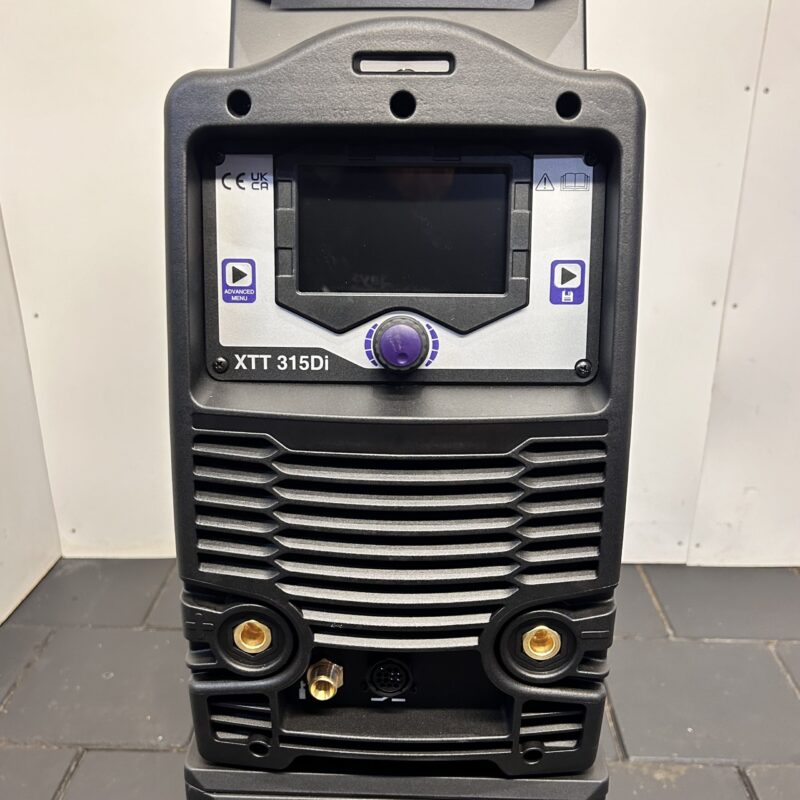

Parweld XTT315Di AC/DC
Price range: € 2.995,00 through € 3.175,00
The New Parweld XTT315Di AC/DC
Click here for more information.
Available with:
Parweld PRO-GRIP Max 20 8 Meter
Parweld PRO-GRIP Max 18 8 Meter
- TIG SYN: Synergic control options in TIG mode set the recommended parameters for you. Adjustments can be made as required.
- TIG HF or Lift TIG (manual): Set the parameters yourself. Choose TIG welding with HF ignition or Lift TIG.

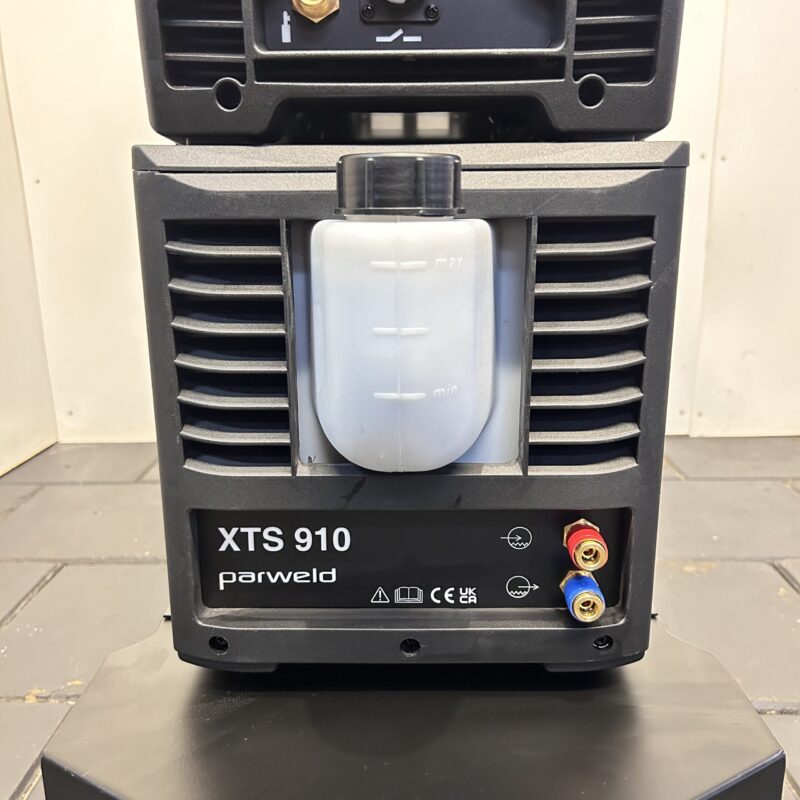

- Supplied including XTS910 water cooler with 12-litre tank and TR008 trolley with gas cylinder holder (gas cylinders up to 50L).
- New feature – TIG Amplitude: The independent amplitude/amp regulation allows the EP and EN amperages to be set separately. This ensures precise control of heat input to the workpiece and electrode. The advanced AC balance controls the amount of oxidation cleaning (the ampere time in EN) which is required for welding high-quality aluminium. The AC frequency determines the width of the arc cone and the strength of the arc.
- Advanced settings: for more adjustment options.
- Choice of 4 wave types in AC mode: square wave (standard), soft square wave, trapezoidal wave and sine wave.
- Spot welding and stitch welding.
- AC Mix can be set (DC mode)
- Q start and Q time (DC TIG)
- Memory function: Saving of 6 welding programmes for fast start-up.
| Outgoing Current | 5-315A DC 10-315A AC |
| Incoming Current | 3 x 400V |
| Pulse range | 0.5 – 200Hz |
| Up slope function | 0-10s |
| Down slope function | 0-10s |
| pre-flow | 0-10s |
| post-flow | 0-10s |
| AC Frequency | 50 – 250Hz |
| Minimal Fuse rating | 16A T |
| KVA | 13.6 |
| Isolation | IP23S |
| Generator Size | 17KVA |
| Size without trolley and cooler | 580mm x 240mm x 440mm |
| Weight machine (kg) | 38 |
| Duty Cycle TIG | 315A @ 60% 220A @ 100% |
| Duty Cycle MMA | 270A @ 70% 210A @ 100% |
- TIG SYN: Synergic control options in TIG mode set the recommended parameters for you. Adjustments can be made as required.
- TIG HF or Lift TIG (manual): Set the parameters yourself. Choose TIG welding with HF ignition or Lift TIG.
- Supplied including XTS910 water cooler with 12-litre tank and TR008 trolley with gas cylinder holder (gas cylinders up to 50L).
- New feature – TIG Amplitude: The independent amplitude/amp regulation allows the EP and EN amperages to be set separately. This ensures precise control of heat input to the workpiece and electrode. The advanced AC balance controls the amount of oxidation cleaning (the ampere time in EN) which is required for welding high-quality aluminium. The AC frequency determines the width of the arc cone and the strength of the arc.
- Advanced settings: for more adjustment options.
- Choice of 4 wave types in AC mode: square wave (standard), soft square wave, trapezoidal wave and sine wave.
- Spot welding and stitch welding.
- AC Mix can be set (DC mode)
- Q start and Q time (DC TIG)
- Memory function: Saving of 6 welding programmes for fast start-up.
| Outgoing Current | 5-315A DC 10-315A AC |
| Incoming Current | 3 x 400V |
| Pulse range | 0.5 – 200Hz |
| Up slope function | 0-10s |
| Down slope function | 0-10s |
| pre-flow | 0-10s |
| post-flow | 0-10s |
| AC Frequency | 50 – 250Hz |
| Minimal Fuse rating | 16A T |
| KVA | 13.6 |
| Isolation | IP23S |
| Generator Size | 17KVA |
| Size without trolley and cooler | 580mm x 240mm x 440mm |
| Weight machine (kg) | 38 |
| Duty Cycle TIG | 315A @ 60% 220A @ 100% |
| Duty Cycle MMA | 270A @ 70% 210A @ 100% |
| Pakket: | Parweld XTT315Di + PRO20 – 8 Meter, Parweld XTT315Di + PRO18 – 8 Meter |
|---|
